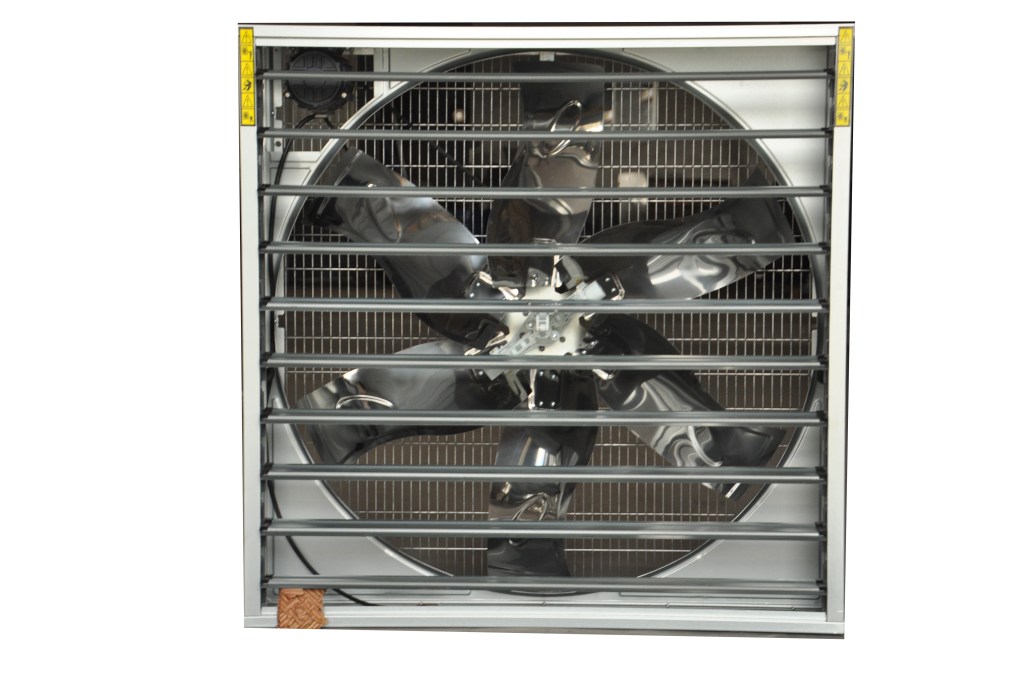

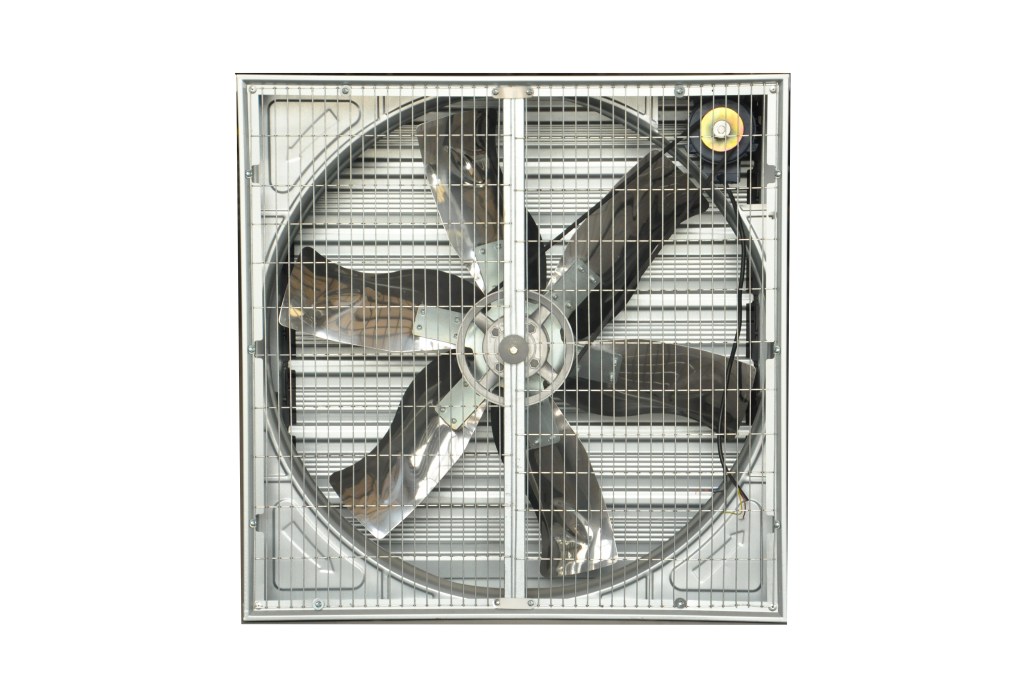

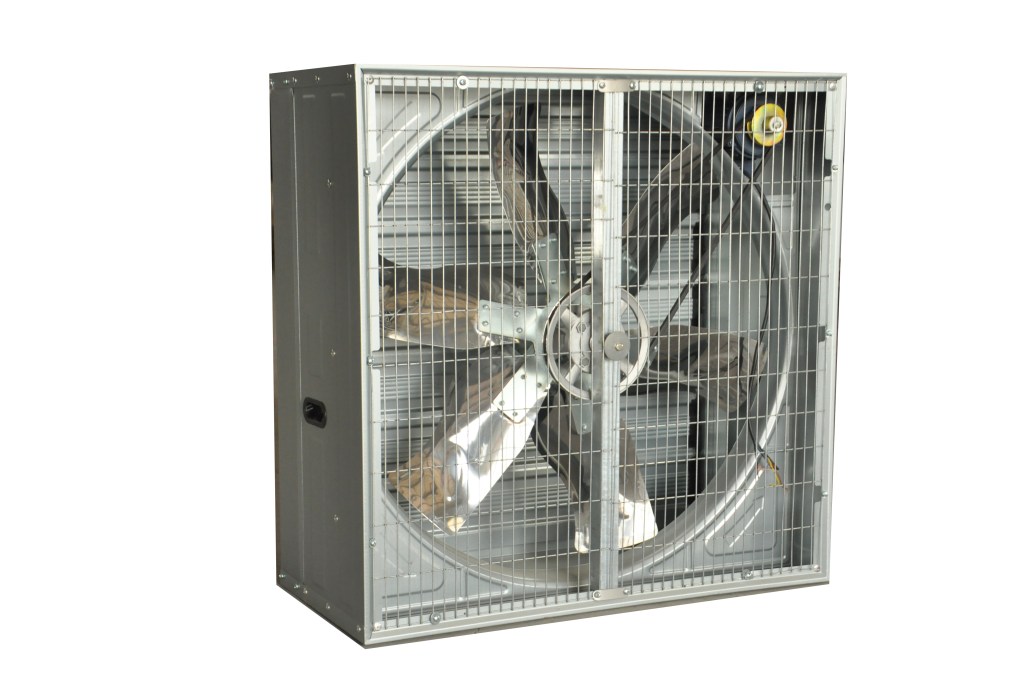

Description

Jinhe series exhaust push-pull fan adopt CAD/CAM optimization design and manufacture, select panels and accessories, strict quality control, high quality testing requirements make the fan produced by Big Herdsman has the following characteristics: high total pressure, large air volume, low noise, low energy consumption, smooth operation, long life and so on.

Main Features

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,
utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow.

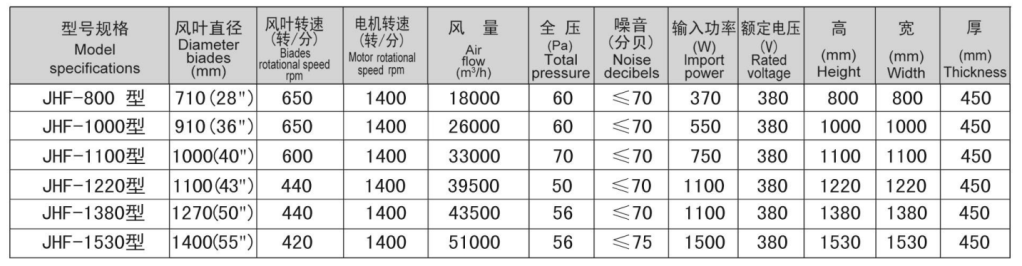

Specification

Detailed Image

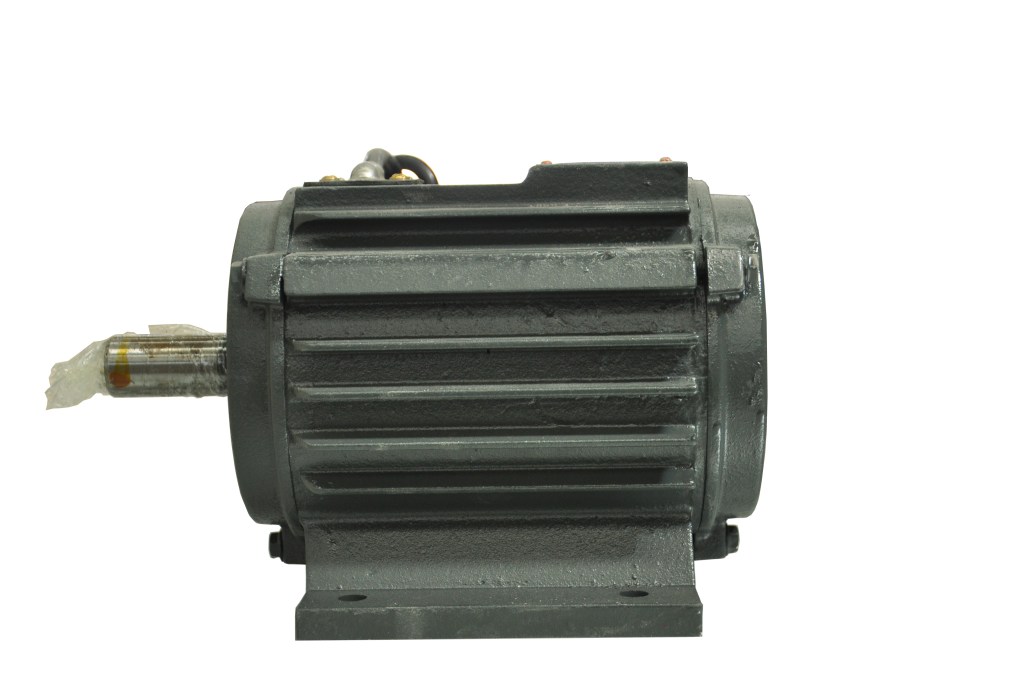

Both China famous motor and Siemens motor are available Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which
would power off when shortage of electricity.Motor protection grade IP55, insulation class F grade.

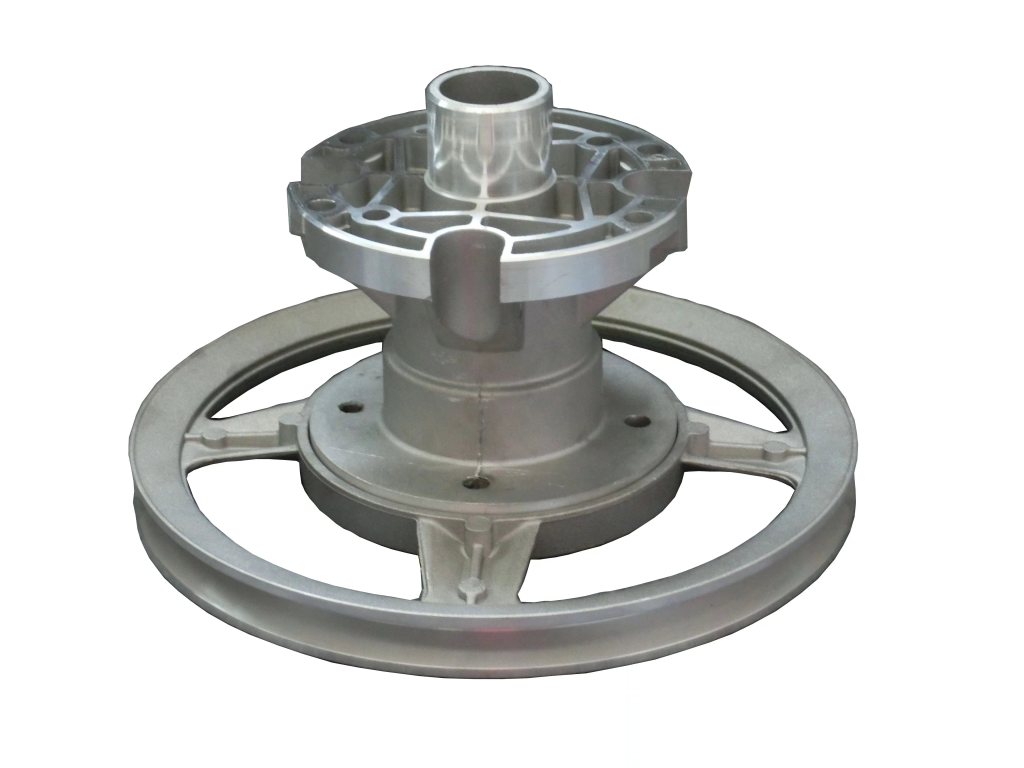

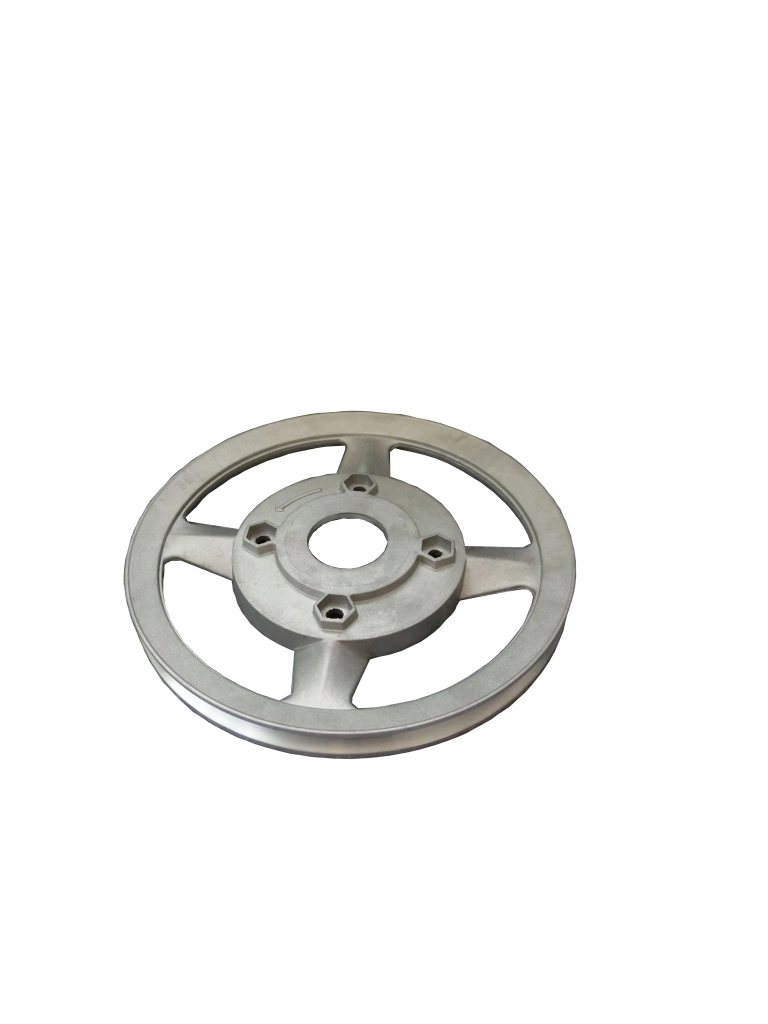

Fan belt pulley and flange are made of high strength aluminum- magnesium alloy by die-casting. Light weight, lower vibration.Blast- sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability.

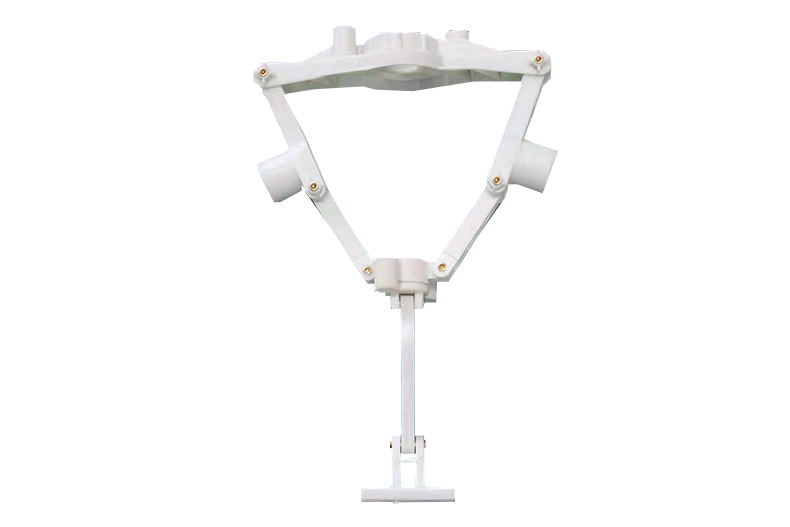

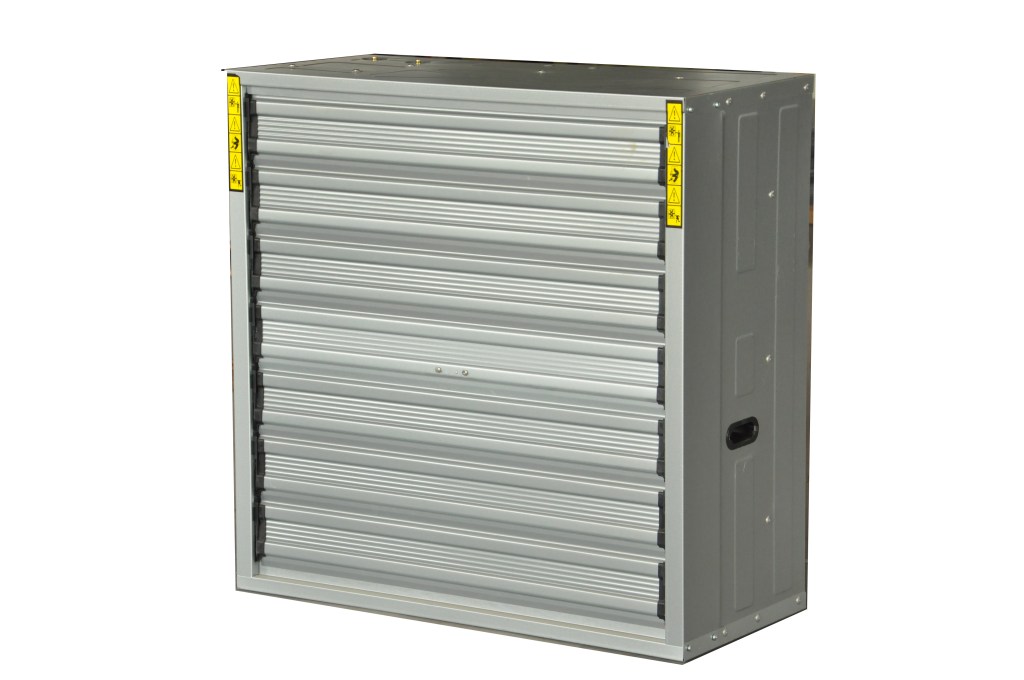

Centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume. When close, the sealing can efficiently block light and wind into the poultry farm house. As the first one adopt high quality nylon PA66 to ensure the long service life. The fasteners of centrifugal system all are copper rivets, wear-resisting and no rust,
flexible. Guide rod is made of 304 stainless steel, ensure the high strength, no rust, reduce friction.

Fan bearing adopts imported double-row bearing with special waterproof design.High strength, low noise, free maintenance and long service life.

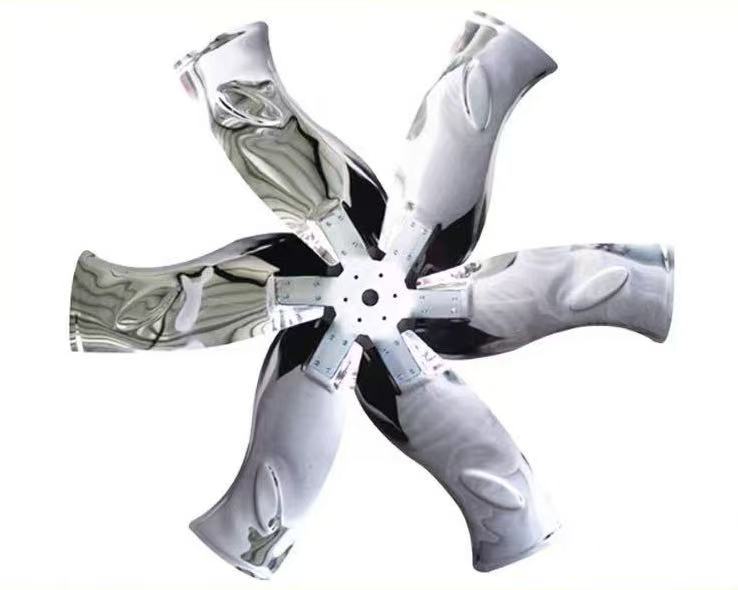

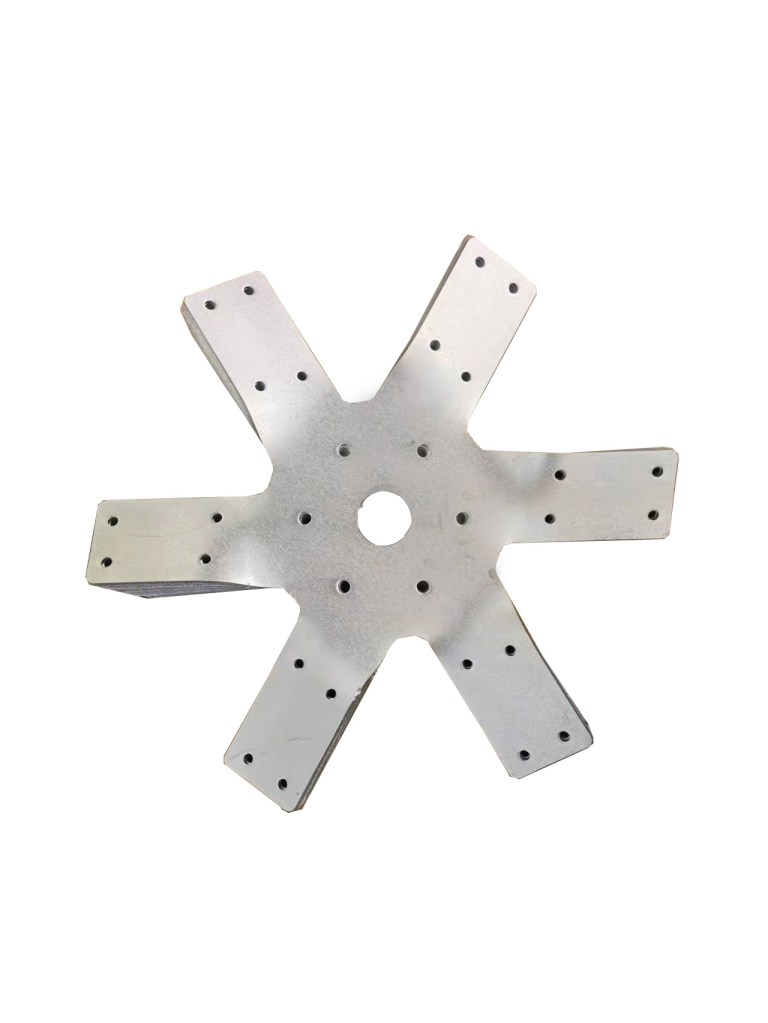

Fan blade is special designed for the biggest efficiency which made of Krupp stainless steel by punch forming. Large air volume, no
deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.
